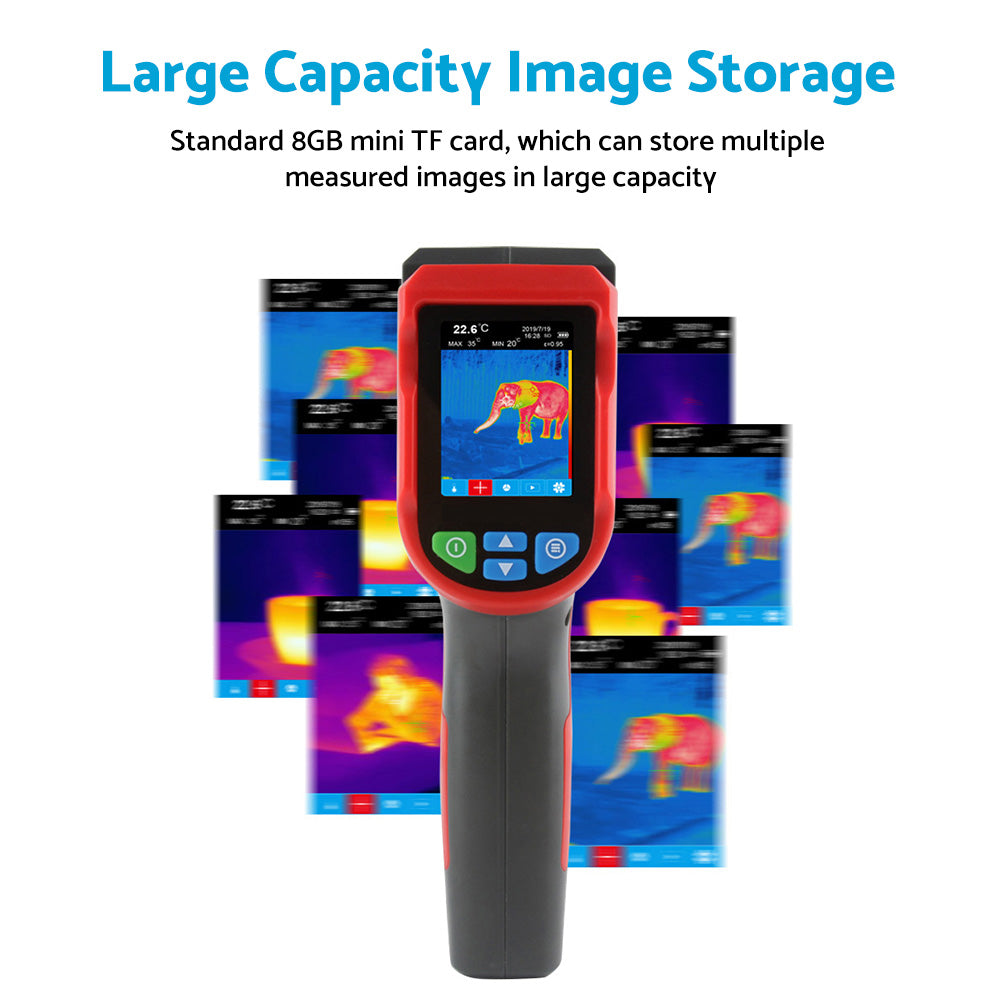

Features: This Product has thermal imaging function and can display hot and cold spots on the screen, enabling users to observe the object temperature changes more effectively. It helps you to quickly lock the target area. The standard 8GB memory card can save a large number of images and data and generate high-quality infrared images, which is a useful tool for fault maintenance.
Main function: 1. 2-megapixel white lens 2. 2.4 TFT LCD Display 3. Temperature testing range: -10°C ~ 400°C 4. 32×32 pixel resolution, 33° Field of View 5. Merging visible and infrared image display 6. Chargeable Li-ion battery (charge by micro USB interface)

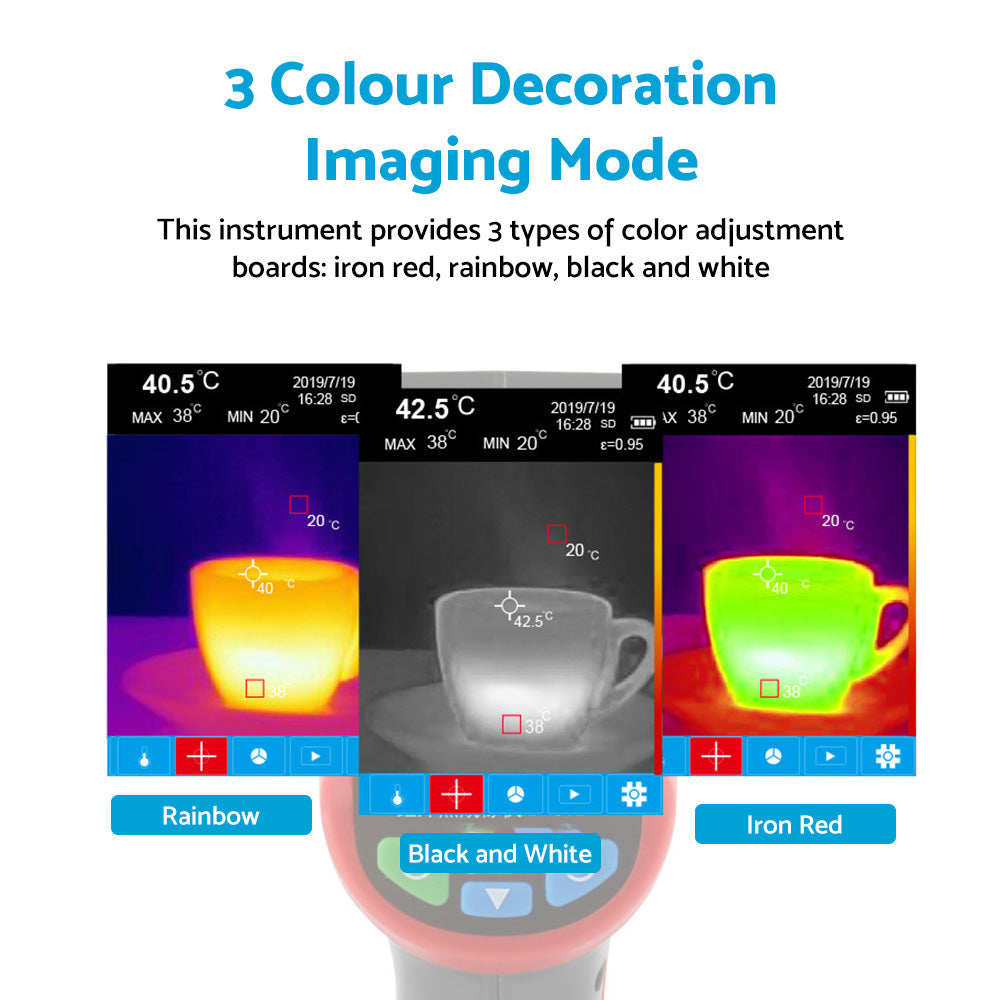

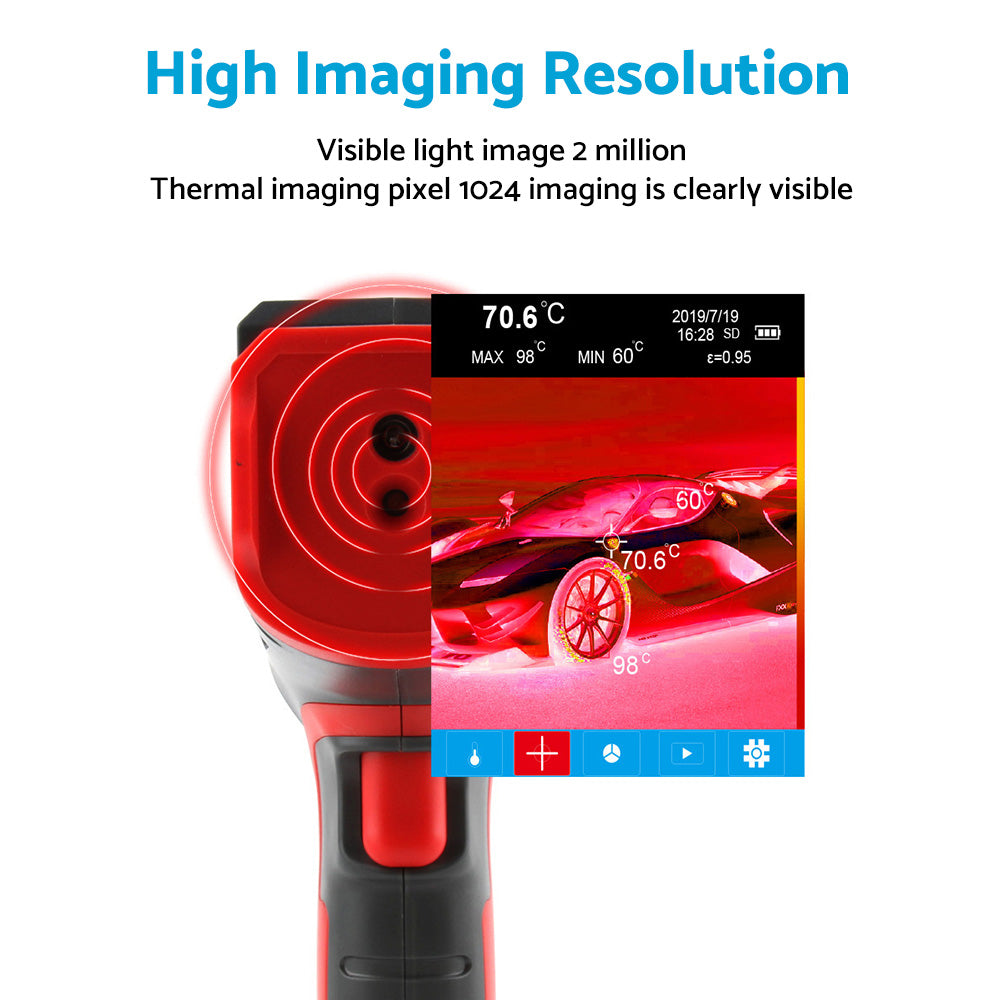

Specification: Type: Thermal Imaging Camera Thermal imaging resolution: 1024 pixels (32*32) Visible light camera: 2 million pixels Display Mode: Thermal Imaging, Thermal Hybrid, Digital Camera Color Palette: Iron Red, Rainbow, Black & White Wavelength range: 8~14um Field of View (FOV): 33° horizontal Instantaneous Field of View (IFOV): 18mrad Thermal imaging sensitivity: 150mk Frame rate: ≤9Hz Save Image Format: Bitmap (BMP) Image Measuring temperature range: -20°C to 400°C Basic Accuracy: 0°C to 400°C accuracy: ±1.8% or ±1.8°C, whichever is greater -20 to -0.9℃ Accuracy: ±3℃ test condition Emissivity: 0.95 Ambient temperature: 25±2℃ Emissivity: 0.10-0.99 custom adjustment Measurement resolution: 0.1°℃/F Response time: 150ms Wavelength range: 8~14um Equipment size: 60*120*210mm Display Type: 2.4"TFTLCD Display resolution: 320*240 pixels Battery: 3.7V/2600mAh Automatic shutdown function: yes Operating Temperature: -10°C to 45°C, 14°F to 113°F
Package Included: 1 x Thermal Imaging Camera 1 x 8GB Mini TF Card 1 x USB Cable 1 x Storage bag 1 x Instruction

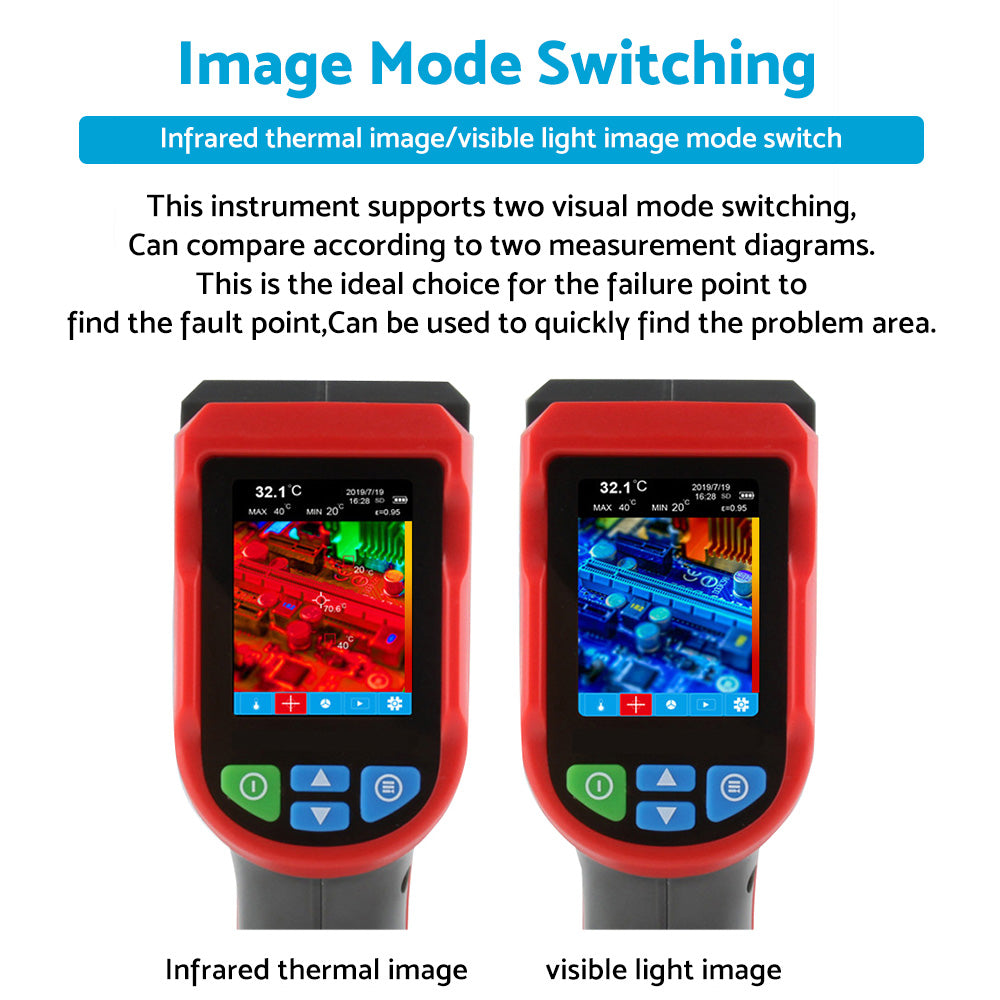

Note: Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.

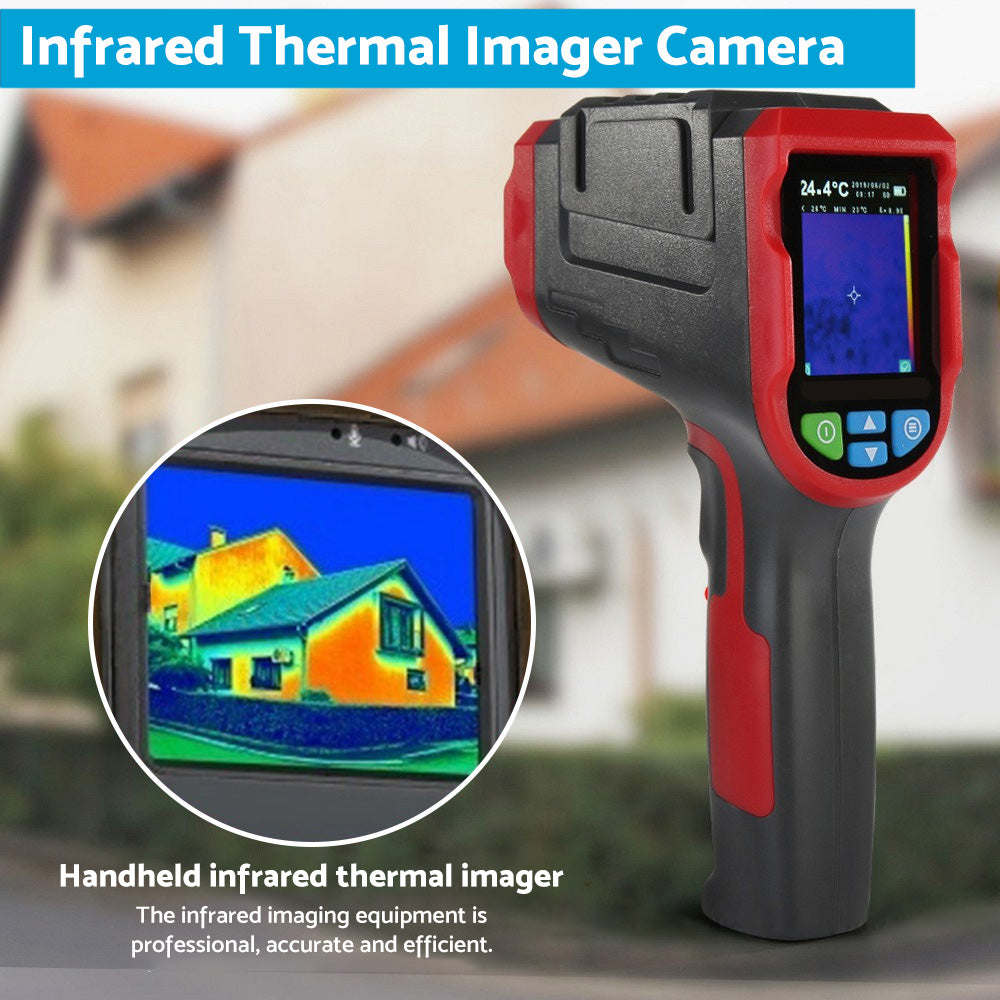

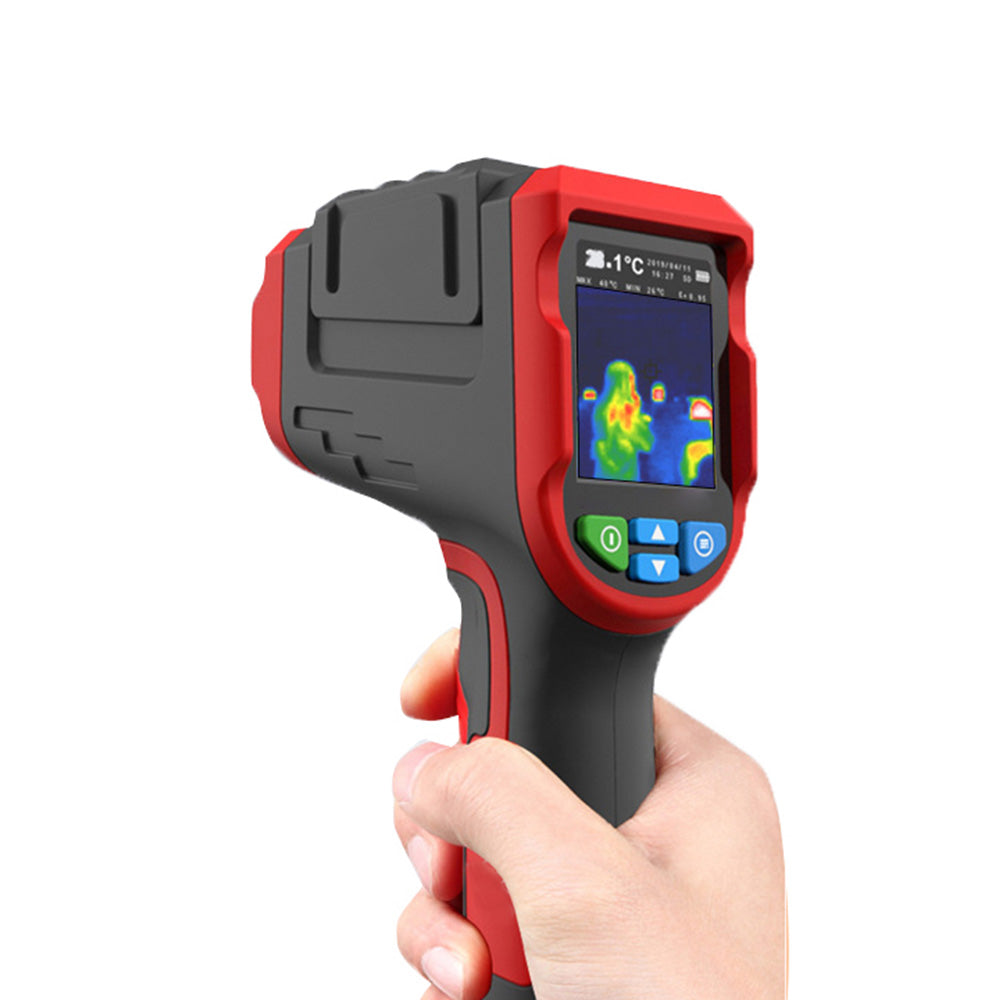

Pro Thermal Imaging Camera Infrared Sensor Imager Suitable For Night Vision Applications

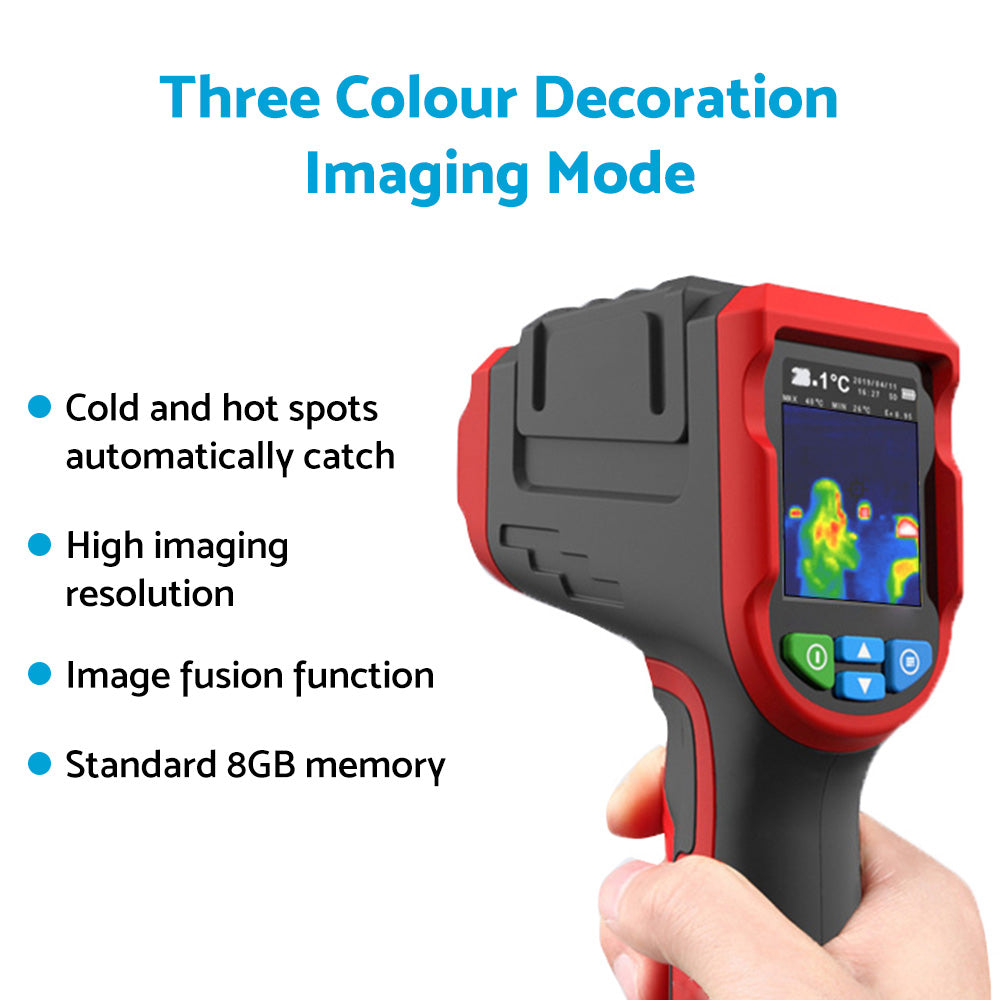

Features: This Product has thermal imaging function and can display hot and cold spots on the screen, enabling users to observe the object temperature changes more effectively. It helps you to quickly lock the target area. The standard 8GB memory card can save a large number of images and data and generate high-quality infrared images, which is a useful tool for fault maintenance.

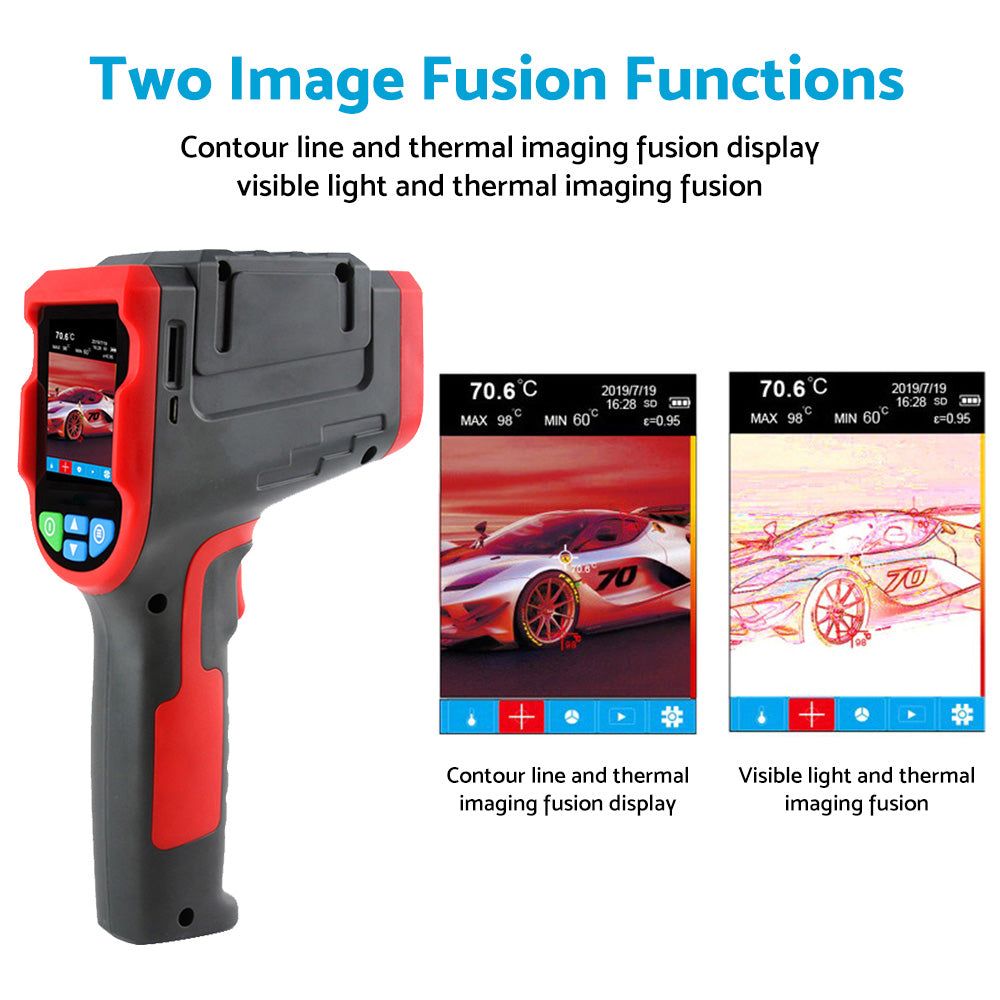

Main function: 1. 2-megapixel white lens 2. 2.4 TFT LCD Display 3. Temperature testing range: -10°C ~ 400°C 4. 32×32 pixel resolution, 33° Field of View 5. Merging visible and infrared image display 6. Chargeable Li-ion battery (charge by micro USB interface)

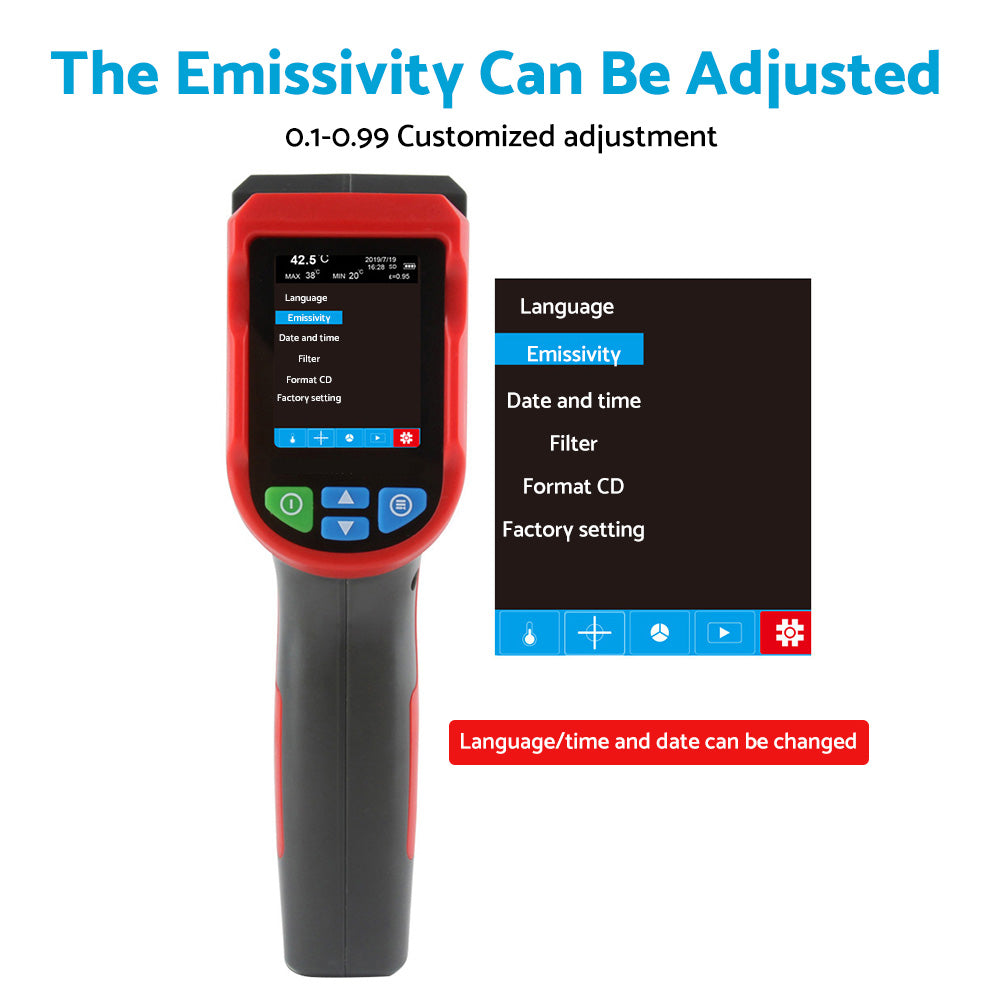

Specification: Type: Thermal Imaging Camera Thermal imaging resolution: 1024 pixels (32*32) Visible light camera: 2 million pixels Display Mode: Thermal Imaging, Thermal Hybrid, Digital Camera Color Palette: Iron Red, Rainbow, Black & White Wavelength range: 8~14um Field of View (FOV): 33° horizontal Instantaneous Field of View (IFOV): 18mrad Thermal imaging sensitivity: 150mk Frame rate: ≤9Hz Save Image Format: Bitmap (BMP) Image Measuring temperature range: -20°C to 400°C Basic Accuracy: 0°C to 400°C accuracy: ±1.8% or ±1.8°C, whichever is greater -20 to -0.9℃ Accuracy: ±3℃ test condition Emissivity: 0.95 Ambient temperature: 25±2℃ Emissivity: 0.10-0.99 custom adjustment Measurement resolution: 0.1°℃/F Response time: 150ms Wavelength range: 8~14um Equipment size: 60*120*210mm Display Type: 2.4"TFTLCD Display resolution: 320*240 pixels Battery: 3.7V/2600mAh Automatic shutdown function: yes Operating Temperature: -10°C to 45°C, 14°F to 113°F
Package Included: 1 x Thermal Imaging Camera 1 x 8GB Mini TF Card 1 x USB Cable 1 x Storage bag 1 x Instruction
Note: Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
