Radiator Fan Control Switch Digital Type 12V Cooling System 0445

Description
A digital thermo fan controller designed for Radiator Cooling 0445 systems. Supports 15–27V operation (24V requires suitable relays), with dual 40A fan outputs and single-speed control. Features a red LED temperature display with °C/°F switch, 40–110°C (104–230°F) range, and 99.90% accuracy. Includes 1/4" NPT thermal sensor and push-button temp setting.

Features
Dual 40A relays with 10-second delay for second fan startup
Red LED shows actual & set temperature, switchable °C/°F
Push-button setting with pre-programmed microcontroller
Compatible with DCPL, 2x14" HP and 2x16" fans
Compact design (95×65×56mm), with 1/4" NPT sensor included

Specifications
Type: Thermo Fan Switch
Warranty: 1 Year
Voltage: 15V–27V (24V use requires matching relays)
Current: Max 40A
Speed: Single-speed with 10s delay for Fan #2
Display: Red LED (actual & set temperature)
Temp Range: 40°C to 110°C (104°F to 230°F)
Accuracy: 99.90%
Temp Setting: Push Button

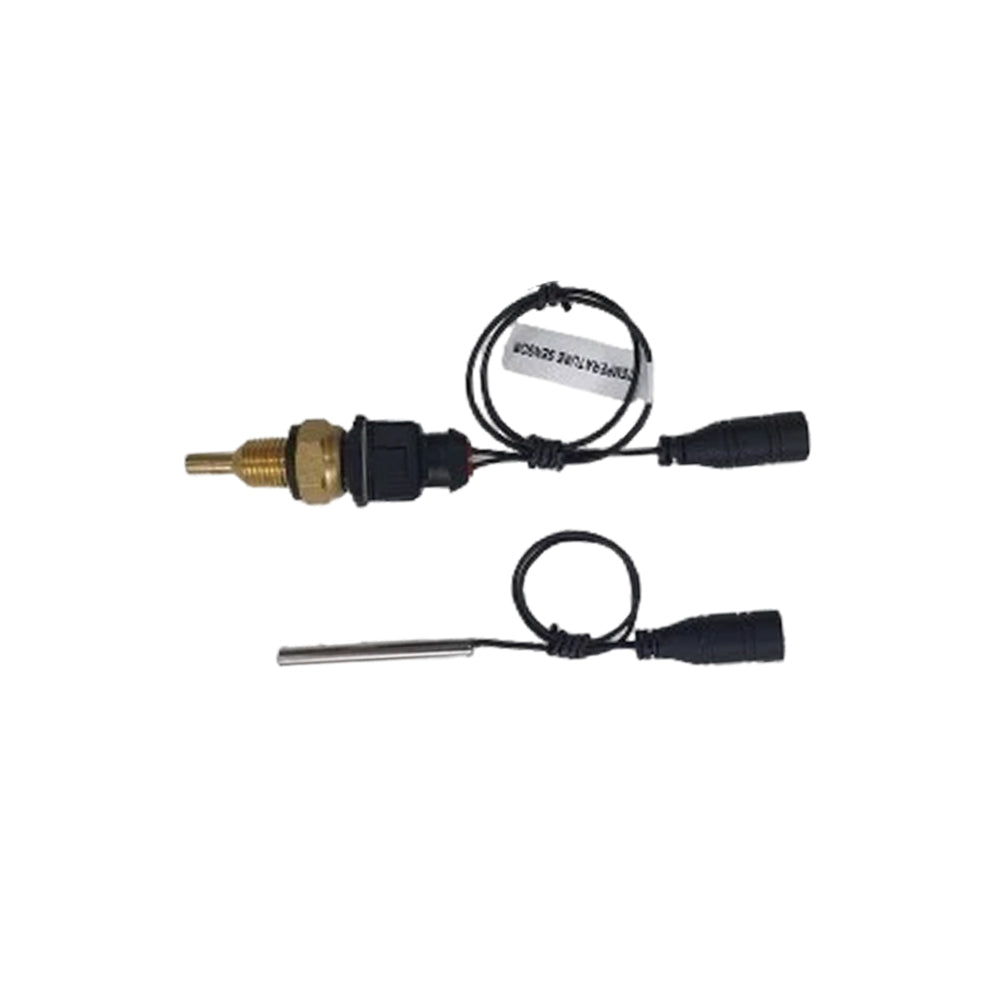

Sensor Type: 1/4" NPT Thermal Sensor
Applications: DCPL fans, 2x14" HP + 2x16" fans
Circuit: Pre-programmed MCU
Output Wires: Batt+, Batt-, IGN, AC Clutch, Fan #1, Fan #2, Probe
Dimensions: 95 x 65 x 56 mm
Reference Number: Suitable for 0445

Compatible With
Suitable for  Radiator Cooling 0445

Package Includes

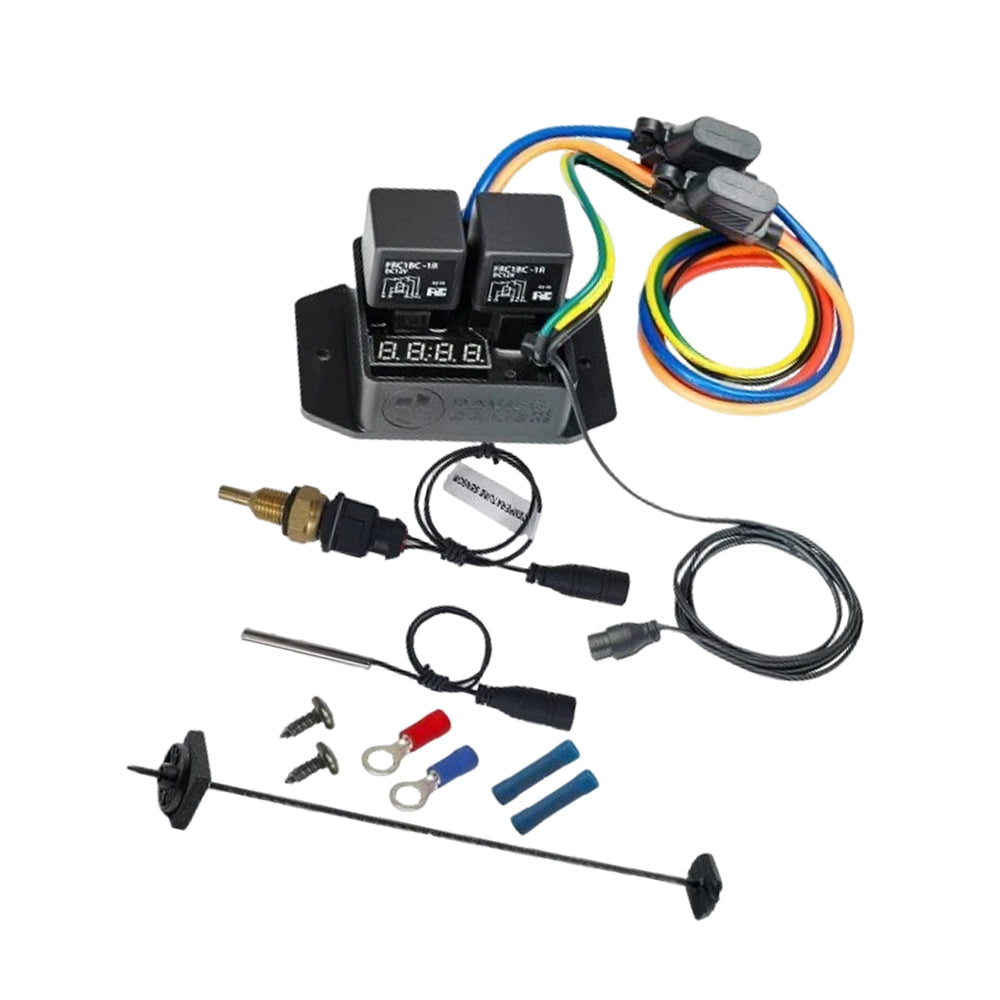

1x Digital Thermo Fan Controller Switch

Note
All parts are aftermarket replacements. While compatible with the listed models, they are not manufactured or endorsed by the original equipment manufacturer (OEM).
All trademarks and brand names are used for identification purposes only and remain the property of their respective owners.
